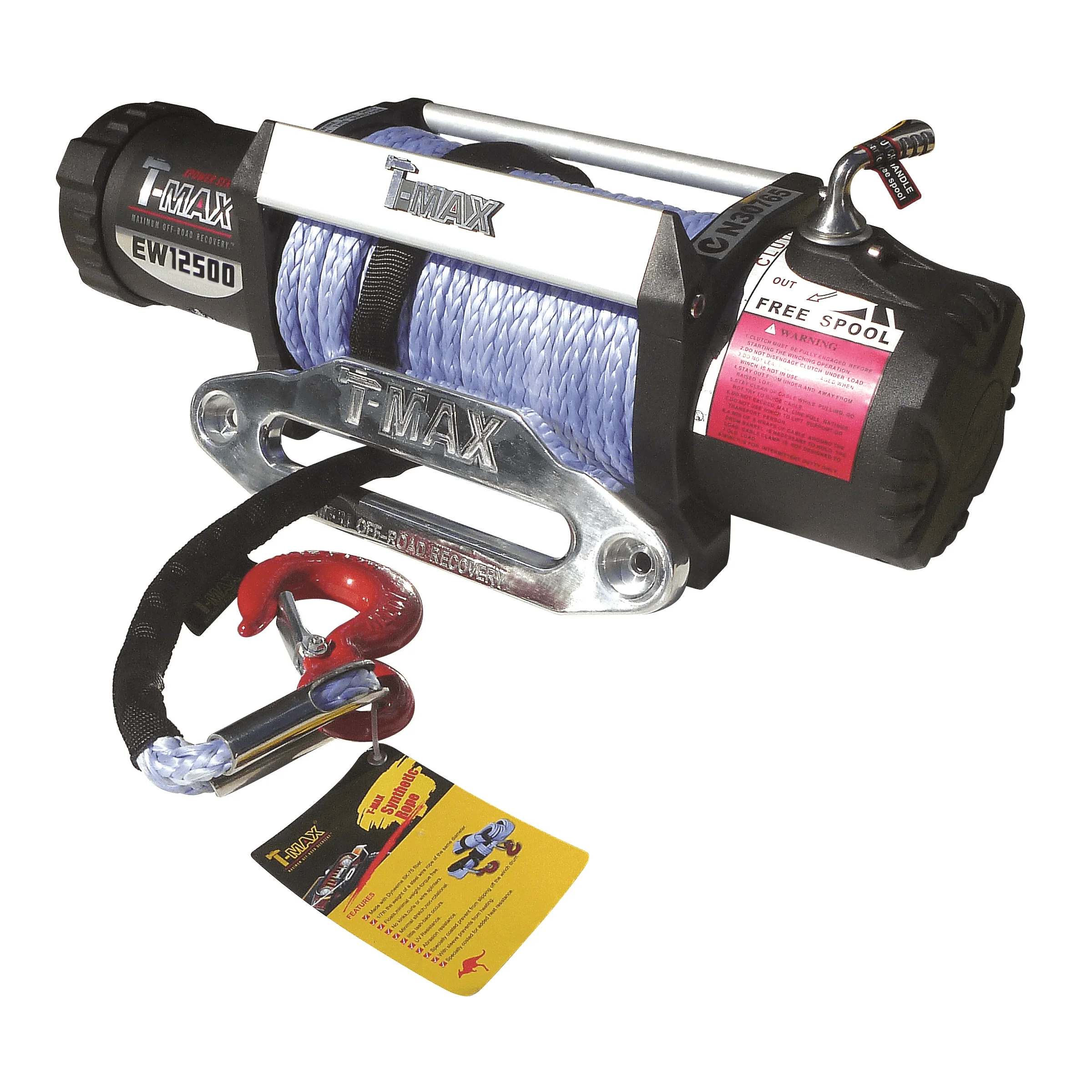

T-Max X-Power Series IP67 Waterproof/Dustproof 12500lb 12v Electric Winch Spooled with Synthetic Rope

The T-max TMAHEW12500pr is a 12500lb 12 Volt electric winch spooled with Dyneema Synthetic Rope,the T-Max X-Power series winches has been independently tested & Approved by Australian government authority ot international standard IP67 dust/waterproof , tested in 1 metre underwater for 30 minutes, 8 hour dust chamber, water blasted from all angles at 100psi. So we know the T-Max winches can handle the Australian conditions. The 12500lb is a great size for the larger 4×4’s or anyone who is planing on towing a caravan and wants that extra strength.

Features

• Waterproof solenoid
• Low Amp Waterproof Motor
• High Speed
• Long Working Duty
• Dyneema SK-75 Fibre
• Low Noise Brake
• High Efficiency
• Waterproof Gear Box

Features & Specifications

Rated Line Pull : 12500LB (5665 Kg) Single line

Motor : 6.6 HP 12V High Output Paraller Series Wound

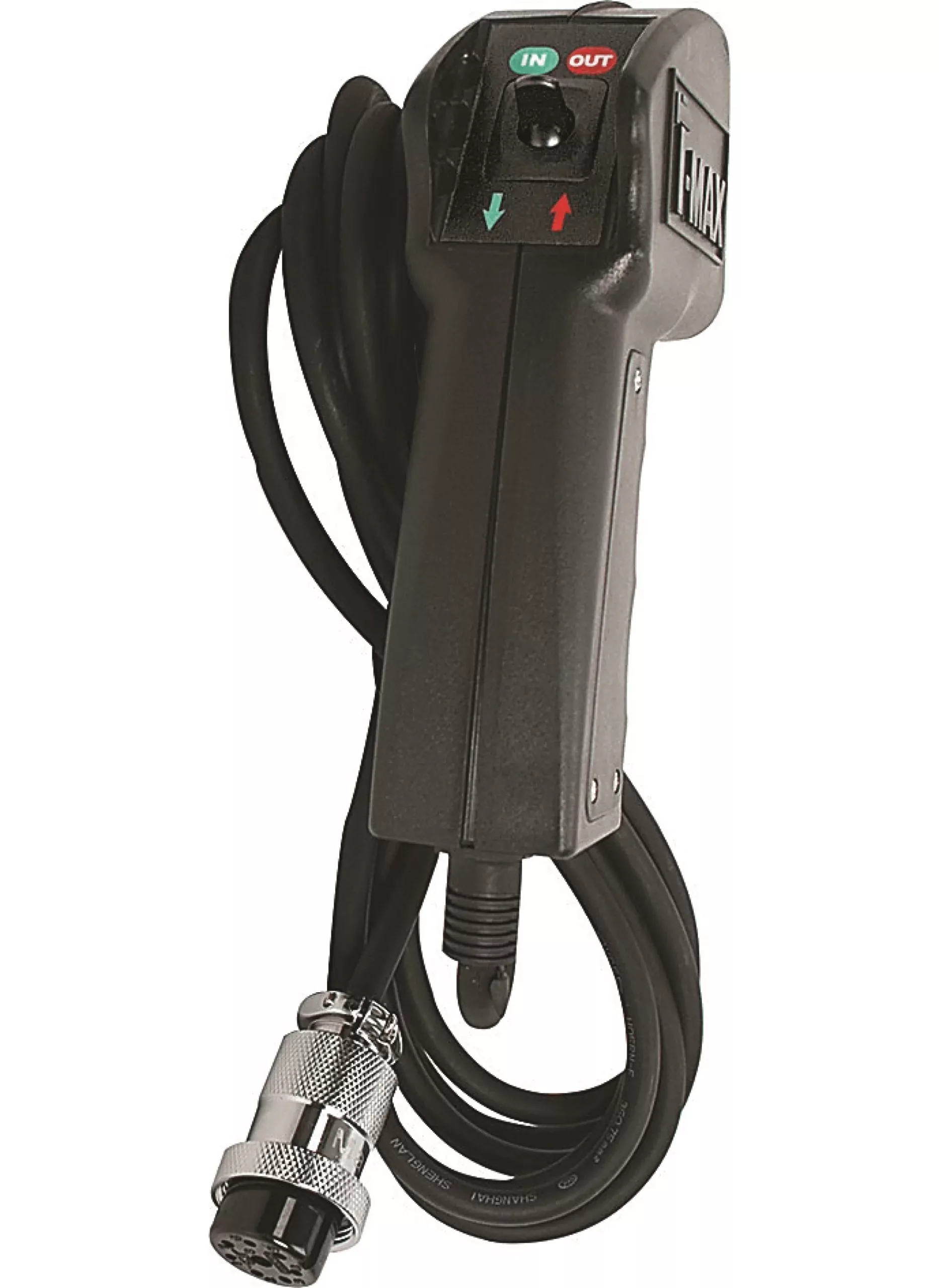

Control : Remote Switch, 12′ (3.7M) Lead

Gear Train : 3 Stage Planetary

Gear Ratio : 193:6

Clutch : Sliding Ring Gear

Braking : Automatic IN-THE-DRUM

Drum Size : Diameter x Length 2.5″ x 8.75″ (63.5mm x 222mm)

Synthetic Rope : Diameter x Length 7/16″ x 89′ (11mm x 27m)

FairLead : Aluminium Hawse Fairlead

Remote : Included

Recommended Battery : 650CCA Minimum for Winching

Battery Leads : 25mm, 72″(1.83M)

Weight : 64LB(29KG)

Overall Dimensions : 21.6″ x 6.3″ x 6.4″ (548 x 160 x 164mm)

Mounting Bolt Pattern : 10.00 + 0.015N x 4.50 + 0.01N (254 x 114.3mm)

Line Pull & Cable Capacity:

Line Speed & Amp Draw – First Layer
